UTIS® Basic

Seek the TRUTH of Life

Brief Intrduction

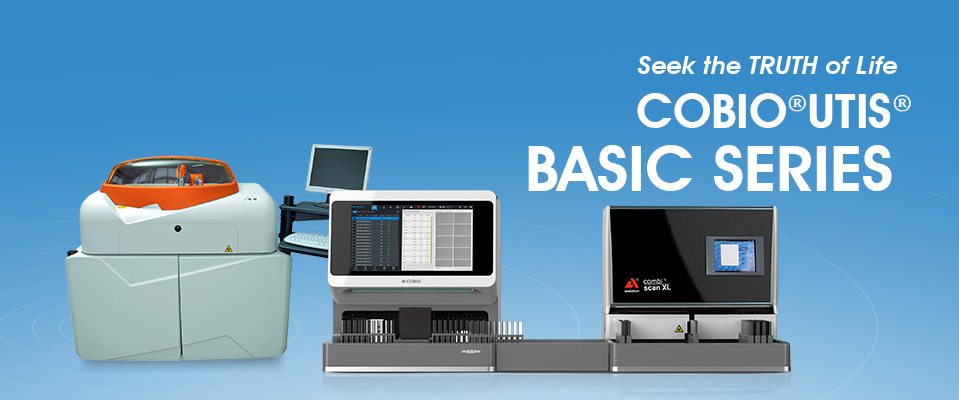

COBIO®UTIS® Basic Set include Palio 300 urine clinical chemistry auto analyzer, S80 urine sediment auto analyzer and XL dipsticks auto analyzer. The whole set can provide the result of urine dry chemistry, urine sediment results with microscope pictures and the quantitate urine special proteins and enzymes results. This can provide a whole solution to screen early chronic kidney disease.



CombiScan XL
CombiScan XL is a fully automated urine test strip analyzer for use with CombiScreen 11SYS or 11SYS PLUS test strips. It is designed for bigger laboratories and for hospitals, who want to save costs for laboratory staff.


COBIO®S80

COBIO® S80 is a fully automated urine sediment analyzer for use with COBIO cuvette. It is designed for small or middle laboratories and for hospitals, who want to save costs for laboratory staff. It also include COBIO Smartlab Technology which can help clinicians for long distance help via internet when they encounter the sediment difficult to distinguish.

PALIO®300

PALIO 300 is a fully automated urine clinical chemistry analyzer. It is designed for laboratories and for hospitals, who want to get precise quantitate data of urine proteins and enzymes for patients.


Features & Functions

CombiScan XL

  • Modern CCD technology
  • Fully automated test strip and sample handling
  • Loading of up to 100 samples possible
  • Internal test strip container for 150 test strips
  • Big touch screen for convenient operation
  • Integrated barcode reader
  • Enter data via keyboard
  • Integration to laboratory network systems possible


COBIO®S80

  • Morphocytological technology
  • Fully automated sample handling and evaluation
  • Loading of up to 100 samples possible
  • Internal cuvette container for 600 cuvettes
  • Big touch screen for convenient operation
  • Integrated barcode reader
  • Integration to laboratory network systems possible


PALIO®300

  • Morphocytological technology
  • Fully automated sample handling and testing
  • Automatic dilution of samples/calibrators/controls
  • Optional ISE module(Na, K, Li and Cl in serum, plasma and urine)
  • On-board reagents’ cooling system
  • Loading of up to 59 samples/controls/calibrators possible
  • Long life lamps
  • Re-washable cuvettes
  • Bar-code reader for samples and reagents
  • Integration to laboratory network systems possible


Technical Data

CombiScan XL



Image sensor:
CCD technology
Throughput:
250 strips/hour fully automated
Display:
170 x 130 mm Touchscreen
Memory:
Last 9999 results
Interfaces:
USB, RS 232, seriell, monitor, LAN



COBIO® S80



Magnify lens:
x 40 lens
Minimum sample volume:
2 ml
Throughput:
60 tests/hour fully automated
Test Items:
RBC,WBC,HYA,PAT,EPI,NEC,BAC,YEA,CRY,CaOxm,CaOxd,MUC,SPM
Display:
19 inch touchscreen
Memory:
Last 9999 results
Interfaces:
USB, RS 232, seriell, monitor, LAN



COBIO®Palio®300



Throughput:
300 tests/hour fully automated(Up to 500 tests with ISE)
Reagents position:
49 position
Wavelength:
8 from 340 nm to 700 nm plus one free position
Light source:
Long life halogen lamp (2000 hours)
Cuvettes:
80 on-board re-washable Bionex© cuvettes
Water consumption:
3 liters per hour
Interfaces:
USB, RS 232, seriell, monitor, LAN
